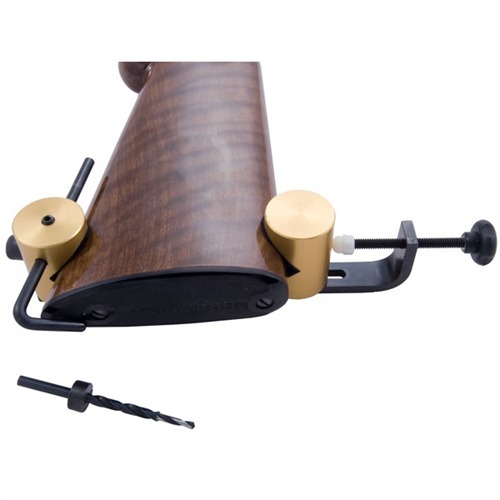

For Precise Alignment & Drilling Of Stock Swivel Stud Holes
Precision adjustable jig maintains the proper drill bit alignment to ensure the correct location of the rear swivel stud hole. Fits any size stock and automatically self-centers for perfect stud hole alignment. Felt lining prevents marring finished stocks. Includes 5/32" diameter carbon steel drill bit contains a special relief tip to help prevent wood splintering and break-out when drilling. Adjustable drill-depth indicator prevents drilling too deep and ruining the hole. For use with hand-held drill. Perfect for the high volume shop or beginner just starting out.
Zum präzisen Ausrichten und Bohren von Lager-Bolzenlöchern
Die präzise einstellbare Spannvorrichtung sorgt für die richtige Ausrichtung des Bohrers, um die korrekte Position des hinteren Bolzenlochs sicherzustellen. Passt auf Materialien jeder Grösse und zentriert sich automatisch selbst, um eine perfekte Ausrichtung der Stollenlöcher zu gewährleisten. Filzfutter verhindert das Verderben der fertigen Ware. Inklusive Kohlenstoffstahlbohrer mit 5/32 "Durchmesser und einer speziellen Entlastungsspitze, um zu verhindern, dass das Holz beim Bohren splittert und ausbricht. Die einstellbare Bohrtiefenanzeige verhindert, dass zu tief gebohrt und das Loch zerstört wird. Für die Verwendung mit Handbohrmaschinen. Perfekt für den Volumenladen oder Anfänger, der gerade anfängt.
TECHNISCHE DATEN: Aluminiumzylinder, eloxiert. Stahlrahmen & Einstellschraube, schwarz, mattiert. Inklusive Halterung, Bohrer mit 3,9 mm Durchmesser und vollständiger Anleitung.
Mehr...
Kundenbewertungen zu KLEINENDORST SLING SWIVEL DRILL JIG
Anzahl der Bewertungen: 2
Von brownells.com: 2
Durchschnittliche Bewertung: 4.5
I recommend this Drill Jig(18.03.2010)
I recommend this product: 488-000-006 KLEINENDORST SLING SWIVEL JIG To date I have successfully drilled three stocks with it with very good results. The tool is very robust (built well) and capable. I opted to use a fine file however to put a few measurement nicks on the stop rod; e.g. 3" mark to offset the fixed jig block for visible assuredness to stand off repeatable from the butt plate each time with certainty. I did this putting the stop rod against a square then measured for this mark-purely optional. The set screw works as intended. More difficult, my 3rd task required drilling a stock for a military style two screw swivel plate. It worked fine performing the math for the second hole. I am very pleased over all. Read the instructions and start patiently to get the hang of it. I believe you will like it as I do.
Best Sling Swivel Jig(26.05.2013)
Kleinendorst has the best tool for accurately drilling sling swivel stud holes in the butt of a rifle or shotgun stock! The other designs are a lot of foolishness for mediocre results. I assigned 4 out of 5 in the rating system because of one issue that needs to be addressed with this jig. A normal 3/4" threaded sling swivel stud (suitable for wood or synthetic stocks) has a mostly threaded shank with a small portion that is not threaded and slightly larger in diameter. Kleinendorst supplies a drill that will handle both diameters in one step and works wonderfully! However, after that is done and you screw the sling swivel stud in the stock (with or without one of those little black or white plastic spacers) you notice that your very accurately placed hole is not counter-bored. The part of the sling swivel stud that you see when it is screwed in to the stock does not fit flush when you view the stock from the side! There needs to be a specialized Forstner-type bit with an appropriate diameter pin in the middle (centering in the wonderfully accurate hole already there) for counter-boring a tiny bit of stock material and thereby allowing the sling swivel stud to seat flush in the stock. Thanks for a great product!
Artikel-Nr.: 488000006 KLEINENDORST SLING SWIVEL DRILL JIG Herstellerproduktnummer: NONE Die präzise einstellbare Spannvorrichtung sorgt für die richtige Ausrichtung des Bohrers, um die korrekte Position des hinteren Bolzenlochs sicherzustellen. Passt auf Materialien jeder Grösse und zentriert sich automatisch selbst, um eine perfekte Ausrichtung der Stollenlöcher zu gewährleisten. Filzfutter verhindert das Verderben der fertigen Ware. Inklusive Kohlenstoffstahlbohrer mit 5/32 "Durchmesser und einer speziellen Entlastungsspitze, um zu verhindern, dass das Holz beim Bohren splittert und ausbricht. Die einstellbare Bohrtiefenanzeige verhindert, dass zu tief gebohrt und das Loch zerstört wird. Für die Verwendung mit Handbohrmaschinen. Perfekt für den Volumenladen oder Anfänger, der gerade anfängt.
