BROWNELLS
AR-15/M16 UPPER RECEIVER ACTION BLOCK

050806109520 080000661

Protect Receiver From Damage When Clamping

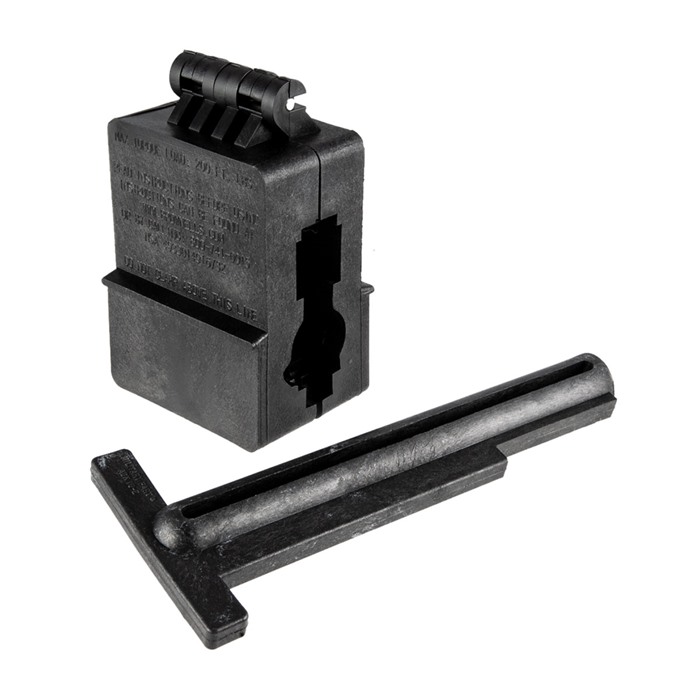

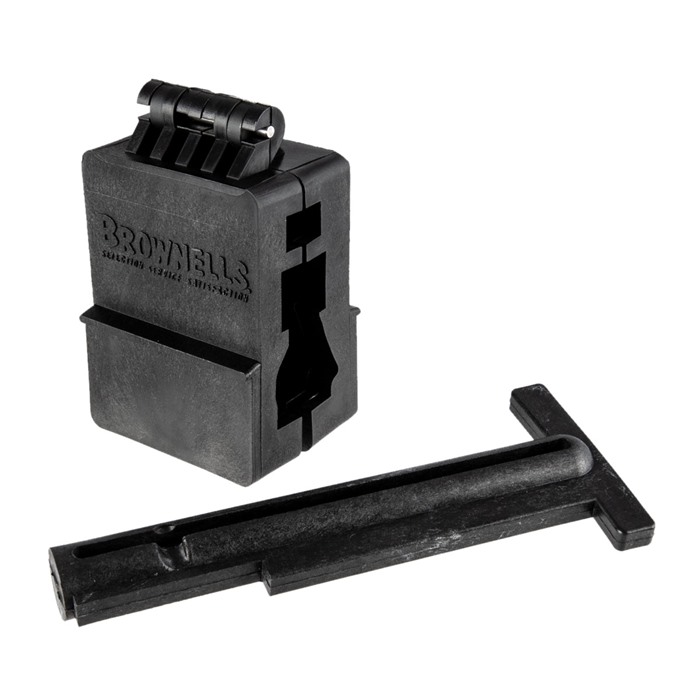

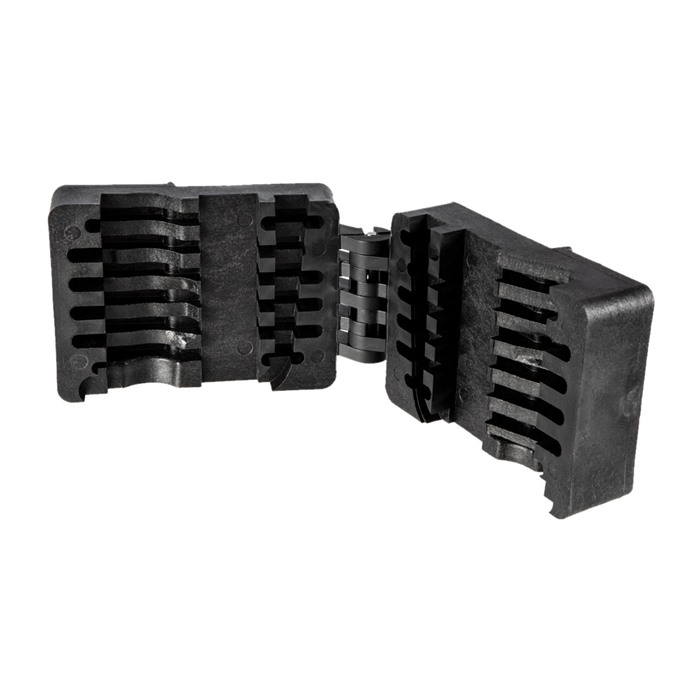

Heavy-duty blocks allow you to firmly clamp AR-15/M16 receiver halves in a vise without risk of crushing, twisting, or otherwise distorting them when applying vise pressure or torquing the barrel nut. Keeps your rifle secure for safe, effective cleaning, assembly, and repair. High pressure, solvent resistant, structural Rynite block and insert surround the entire upper receiver and support it inside and out to make rebarreling the AR-15/M16 an easy, one-man job. Lets you firmly secure a mil-spec carry handle receiver or mil-spec flattop receiver in a large bench vise for barrel removal/installation. Torque generated while tightening the barrel nut is transmitted to the block and insert, not the receiver. Minimizes the possibility of damage to the barrel detent pin and receiver detent notch. Holds securely without marring the finish. DO NOT USE ON BILLET UPPERS OR LEFT HAND UPPERS, OR DAMAGE TO THE UPPER CAN RESULT.

SPECS: Injection-molded Rynite, black. Fits A1, A2, and standard flattop receivers. Block - 2.5" (6.3cm) thick, 3.5" (8.8cm) wide, 4.5" (11.4cm) high. Insert - 8" (20cm) long, 1" (2.5cm) diameter. Torque tested to 200 ft. lbs.

Plus...

Protéger le récepteur des dommages lors du serrage

Les blocs robustes te permettent de fixer fermement les moitiés de récepteur AR-15/M16 dans un étau sans risque de les écraser, de les tordre ou de les déformer lorsque tu appliques une pression dans l'étau ou que tu serres l'écrou du canon. Cela maintient ton fusil en sécurité pour un nettoyage, un assemblage et une réparation sûrs et efficaces. Le bloc et l'insert en Rynite résistant aux solvants et à haute pression entourent l'ensemble du récepteur supérieur et le soutiennent à l'intérieur comme à l'extérieur, ce qui rend le rebarrelage de l'AR-15/M16 facile et réalisable par une seule personne. Cela te permet de sécuriser fermement un récepteur avec poignée de transport conforme ou un récepteur flattop conforme dans un grand étau de banc pour le retrait/l'installation du canon. Le couple généré lors du serrage de l'écrou du canon est transmis au bloc et à l'insert, et non au récepteur. Cela minimise le risque de dommages au goupille de détente du canon et à la rainure de détention du récepteur. Se maintient solidement sans abîmer la finition. NE PAS UTILISER SUR DES UPPERS BILLET OU DES UPPERS GAUCHERS, SINON DES DOMMAGES AU UPPER PEUVENT SURVENIR.

SPECS : Rynite moulé par injection, noir. S'adapte aux récepteurs A1, A2 et flattop standard. Bloc - 2,5" (6,3 cm) d'épaisseur, 3,5" (8,8 cm) de large, 4,5" (11,4 cm) de haut. Insert - 8" (20 cm) de long, 1" (2,5 cm) de diamètre. Testé au couple jusqu'à 200 lb-pi.

Plus...

Évaluations client de BROWNELLS AR-15/M16 UPPER RECEIVER ACTION BLOCK

Nombre d'évaluations: 13
De brownells.com: 13
Note moyenne: 4.3

Just Perfect! (17.09.2009)

This tool will save you time and money. The fit is good and will save you from doing serious damage to the upper receiver. Makes taking off the barrel nut a simple quick job to replace the barrel, gas tube or do a really good job of cleaning the breach. If you work on or own any AR-15/M-16 you will need one of these! It also comes with an insert that goes inside the upper receiver to help prevent putting to much pressure or torquing of the upper.

I couldn't get along without it. (16.10.2009)

If you do any barrel or free floating handguard work on an AR-15, this tool is a must. It works great!

Great Tool For Amatures (27.12.2009)

I used this block to install an 11.5" BBL on a DPMS upper A3 upper receiver a few years back and it worked flawless. There is an insert not shown on brownells that protects the receiver from being twisted as you torque the barrel. It goes in where the bolt would normally. A must have tool for any AR15 owner that might want to remove or install a BBL.

If you have friends or relatives with an AR15, they will love you for having this tool available since NOT using a receiver block will damage your rifle.

Good but not Great (19.02.2010)

By all means everyone that does any type of work on their own rifles should have a receiver action block. They are without a doubt the most handy tool there is. This block, however, closes from the top down over the upper receiver. Using any type of non-standard uppper receiver is not possible because the block will not close around the protruding metal. I have recently purchased a Bushmaster Receiver Block that closes from the bottom of the upper receiver. This way if you have optics already mounted or have an upper with a high rail - it does not cause any problems. Since the bottom of the receivers will all be the same so that they can mate with the mil-spec lower receiver - you will not have any issue at all. I would not recommend this particular block to a friend though ... I would recommend the Bushmaster.

Works Great, you get your moneys worth (12.03.2010)

This block works great, no problems, only improvement I made to it was to drill a hole through it, so I could hang it on my peg board. I also marked left and right on the sides.
Great value.

An absolute necessity for building an AR (14.03.2010)

This simple action block works great to safely secure your upper receiver for installing your barrel nut or flash hider. The block is constructed of non-marring delrin that is gentle on the finish of your upper. The block accepts both the carry handle and flattop versions. It also includes an upper insert to protect the integrity of the upper while clamping. This tool is an absolute essential to have in your toolbox.

a definate must have.... (19.03.2010)

this tool is definatly a "must have" if you are into doing your own barrel changes etc.on your ar-15 rifles....its an excellent tool well worth the money....it fits most ar-15's except DPMS TYPES....CHECK WITH BROWNELLS REPS. BEFORE PURCHASE....

huge misalignment issues (11.04.2010)

Doesnt fit DPMS,STAG,L.A.R grizzly,Vltor,Smith and Wesson !!! with "NO" receiver installed the vice block cannot close without added force,when closed there is a huge misalignment of about 1/8 inch fron side to side. I understand many of these receivers are from the same original machine shop but I added the names to help those who dont know this fact. Vltor are not milspec but all the rest are supposed to be. I may have to custom machine it to work as did another reveiewer did, its plastic so i may have to.I just really supprised at the poor quality even without a receiver mounted.

Great way to hold AR uppers. (01.05.2010)

Holds AR15 upper receivers solid. Easy to use.

Good product, but needs updating. (25.05.2010)

I have used this item several times working on my own rifles and it worked great. Now however, since I have obtained the rail alignment tool, I
think the block needs to be modified to allow use of the alignment tool with the action clamped in the block.

Works great with mil spec uppers (08.09.2010)

This action block works fine with both flattop and carry handle uppers. Stiff enough to really hold your work yet won't scratch the finish.

Maybe being picky (27.01.2011)

Great looking block, fits a carry handle and a flatty I have perfect, however I would have liked to have seen the insert fit tighter inside the upper. Maybe I'm too picky but it seems like it would be better if it was more of a slip fit than a loose fit.

Seems really stout though and it's good the hinge has a little preload to it, should help hold the receiver in and not drop it on the floor while you are placing in your vise

Works just like it should have (05.04.2011)

I had a Spike's Tactical upper and it worked just like it was supposed to. The insert that goes inside the receiver was loose the whole time however. I'm not sure if it was doing anything. I ended up having to put 70 foot pounds of torque on the barrel nut to index the next hole and it worked flawlessly.

Lire 13 plus d'avis sur brownells.com

84.9 84.9 1 CHF

Référence: 080000661
BROWNELLS AR-15/M16 UPPER RECEIVER ACTION BLOCK
Ref Fabricant: 702-003-015 050806109520 Les blocs robustes te permettent de fixer fermement les moitiés de récepteur AR-15/M16 dans un étau sans risque de les écraser, de les tordre ou de les déformer lorsque tu appliques une pression dans l'étau ou que tu serres l'écrou du canon. Cela maintient ton fusil en sécurité pour un nettoyage, un assemblage et une réparation sûrs et efficaces. Le bloc et l'insert en Rynite résistant aux solvants et à haute pression entourent l'ensemble du récepteur supérieur et le soutiennent à l'intérieur comme à l'extérieur, ce qui rend le rebarrelage de l'AR-15/M16 facile et réalisable par une seule personne. Cela te permet de sécuriser fermement un récepteur avec poignée de transport conforme ou un récepteur flattop conforme dans un grand étau de banc pour le retrait/l'installation du canon. Le couple généré lors du serrage de l'écrou du canon est transmis au bloc et à l'insert, et non au récepteur. Cela minimise le risque de dommages au goupille de détente du canon et à la rainure de détention du récepteur. Se maintient solidement sans abîmer la finition. NE PAS UTILISER SUR DES UPPERS BILLET OU DES UPPERS GAUCHERS, SINON DES DOMMAGES AU UPPER PEUVENT SURVENIR.

84.9 CHF 271 CHF 84.90 *

Délai de livraison environ 8-15 jours depuis l'entrepôt des États-Unis.

Caractéristiques: Manufacture: AR-15

Ajouter à la Liste d'Envies

Poser un question

Propriétés

Ajouter à la Liste d'Envies

Poser un question

Points forts

Les blocs robustes maintiennent fermement les récepteurs AR-15/M16 sans risque de les endommager.
Facilite le changement de canon avec un soutien complet du récepteur supérieur.
Se fixe solidement sans abîmer la finition, mais ne doit pas être utilisé sur des uppers en billet ou gauches.

Caractéristiques

Manufacture: AR-15 Poids du colis: 0.674kg Hauteur d'expédition: 76mm Largeur d'expédition: 229mm Longueur d'expédition: 318mm UPC : 050806109520

Détails de l'article

Fabriqué au USA

Sécurise ton AR-15/M16 avec le bloc d'action Brownells 🔧. Idéal pour le nettoyage et l'assemblage, sans risque de dommages !
