SINCLAIR INTERNATIONAL

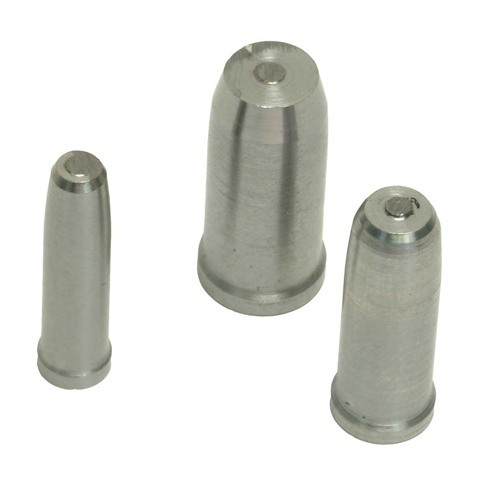

Sinclair Chamber Length Gage

749011499

The Sinclair Chamber Length Gauges are designed so the handloader can determine the true length of his rifle's chamber when measuring from the bolt face to the end of the chamber's neck. This measurement will tell you how much excess case length your chamber may have over published trim lengths in reloading handbooks. The Sinclair Gauges are inserted into a fired, unprimed shortened case and then chambered into your rifle. The insert pushes back into the case when it contacts the end of your chamber. You then extract the case and measure the overall length. The gauge is made of 12L14 soft steel so it will not damage your chamber. Step-by-step instructions accompany each gauge. The gauges can be used over and over again. The differences between published trim lengths and the actual length of your chamber can be quite significant. You could be over trimming your cases by .030 inch or more. NOTE: The 22 caliber gauge will not work on thin-necked cases such as the 22 Hornet, 218 Bee, or cartridges based on these cases. The 30 caliber gauge will not work on teh 30-30 Winchester. None of the gauges listed will work on tight-necked chambers except for the G-243T. Should not be used in handguns, semi automatic rifles, lever actions rifles and pump action rifles.

Altro...

I misuratori della lunghezza della camera Sinclair sono progettati affinché il ricaricatore possa determinare la vera lunghezza della camera del suo fucile misurando dalla faccia dell'otturatore fino alla fine del collo della camera. Questa misurazione ti dirà quanto eccesso di lunghezza del bossolo la tua camera potrebbe avere rispetto alle lunghezze di taglio pubblicate nei manuali di ricarica. I misuratori Sinclair vengono inseriti in un bossolo accorciato, sparato e non primato e poi camerati nel tuo fucile. L'inserto viene spinto indietro nel bossolo quando tocca la fine della tua camera. Puoi quindi estrarre il bossolo e misurare la lunghezza totale. Il misuratore è realizzato in acciaio dolce 12L14, quindi non danneggerà la tua camera. Istruzioni passo-passo accompagnano ogni misuratore. I misuratori possono essere utilizzati ripetutamente. Le differenze tra le lunghezze di taglio pubblicate e la lunghezza effettiva della tua camera possono essere piuttosto significative. Potresti star tagliando eccessivamente i tuoi bossoli di .030 pollici o più. NOTA: Il misuratore di calibro 22 non funzionerà su bossoli a collo sottile come il 22 Hornet, 218 Bee o cartucce basate su questi bossoli. Il misuratore di calibro 30 non funzionerà sul 30-30 Winchester. Nessuno dei misuratori elencati funzionerà su camere a collo stretto, ad eccezione del G-243T. Non dovrebbe essere utilizzato in pistole, fucili semi-automatici, fucili a leva e fucili a pompa.

Altro...

Punteggi dei clienti per SINCLAIR INTERNATIONAL 44 CALIBER CHAMBER LENGTH GAGE

Numero di punteggi: 10
Da brownells.com: 10
Punteggio medio: 3.4

Works excellent (30.04.2012)

I bought the 6.5/264 tool to gauge the length of a .260REM chamber. As per instructions, I removed ~0.1" length from the neck of a once fired, sized, Lapua case and inserted the gauge to measure the chamber. The bolt wouldn't close. Another cut brought total removed to ~0.15" leaving ~0.1". Bolt closed. I would remove a little less (0.12-0.13") from the neck if I did this caliber again, but the tool is very tight in the neck so there is plenty of grip @ 0.1" neck length. Works great! The chamber of my Shilen Match Prefit Barrel for Savage measures 2.06".

This is the eigth one I've bought (12.04.2011)

Since this was the 8th one I've bought, I thought I knew what to expect . The other 7 are shiny and well machined. This one looks like it was cast (black & not very smooth). The first one I was sent (this time), had a smaller size diameter close to the head then down by the tip. It would push in with the appropriate tension until it got to the undersized section ,then just flop in and out about .0685". The replacement I was sent (thank you) had a uniform shank.It, however still looked like an unfinished tool. I started the "tool" in my shortened case ,chambered it in my gun, and discovered I couldn't close the bolt all the way. I took another .01 off the case--still no luck.I measured the case and "tool" length and found it to be 2.075" . That's .03" longer then my Sierra manual lists the chamber should be. I couldn't take anymore off the case ,and still have a neck , so I took another look at the "tool". The other 7 (that all work perfectly)have a head on them that runs from .085" on the .204 to about .098" on the .30cal. . This G-243 has a head that measures .1405". After chucking it up and facing it down to .09" , I could finally measure the rifle's chamber (2.065").I thought [$] was cheaper then setting up a machine and making my own. Not in this case! I don't have any of this fancy leaded steel , and I think [$] is a pretty high price for this size piece for me to machine. So, if and when I need a 9th caliber gage, I have some brass round stock that will probably turn down just fine.

Works Great (01.04.2012)

Everything was exactly as described. The only thing I wish had been included was better instructions on turning down a case neck, or even selling a modified case to use with these already turned down to the right dimensions. It was no issue doing so, but a little more clear instructions would have been nice.

Works - with modification (01.04.2012)

The chamber length gauge for .223 calibers works, but the shoulder is much too thick. Without modification, you need to remove almost all of the neck of a case to allow enough space for the gauge to not bottom out. Problem with this is that there isn't enough neck left to keep the gauge in line with the bore. I had to turn down the .224" diameter part to about 1/3 of the thickness that it is manufactured at so that it would work properly. Other calibers worked outstanding, but this one needs some modification to work.

Will Not Work ! Not properly made. (27.08.2012)

James's review is correct. Instructions with gauge are incorrect. They say to take .1" off cartridge case to allow for the gauge head that is .135" long - duh ! When you take enough case off so the gauge will fit in the chamber there is less than .040" of case neck to hold the gauge and not enough to work. I used .223 Rem/5.56 mm. Sinclair, I thought you guys were better than this.

Useful but could be better (02.02.2015)

Other than the top (flat surface) being unnecessarily too thick, this item was helpful determining the chamber length. If the excessive length were reduced, less case neck would need to be trimmed. If Sinclair pays attention to these reviews, this problem could easily be resolved.

Worked great (24.12.2015)

I had no trouble making a case to accept this gauge. I'm not sure why so many reviewers had difficulties. To make this easier for you gents, trim a re-sized case to 1.640 then insert the gauge. Yes, the case looks short and only has a little bit of neck left, but it works great!

One thing I would change about the directions....it says to drill out the flash hole to make access to push the gauge back out. This is not needed. I used a kinetic bullet puller to "lengthen/re-set" the case with gauge installed. It only needs to be lengthened by 10 thou between uses.

Case length gage (16.02.2011)

Every one that loads rifle ammunition should have one of these in each caliber that they load.Most chambers are much longer than new brass,and even longer than the recommended trim length in most manuals.This simple tool tells you exactly how long your chambers are,so you can trim only the minimum amout of brass from the necks.I usually trim only about 90% coverage of the neck,after the first firing.

5.56 NATO gaged Chamber length new DPMS (10.09.2016)

Followed instructions as provided and measured the chamber 3 times and the length came out exactly 1.781 on the chamber. Knowing this I will size all my Lake City brass to 1.771. Which is where the vast major of measures to any way. Now I have confidence in my reloads thanks to this marvelous little cheap gage. I will keep all my brass separate and will use the 1.771 brass for match shooting and everything else for plinking.

"Not worth the metal it's made of" (14.07.2012)

My reason for one star is because there's no zero star. When placing this guage into a sized unprimed
casing it slips into the shell case with no drag to hold it for any measurement no matter how much neck you remove. Big waste of money..

Leggi più recensioni su brownells.com

9.9 15.9 19 CHF

N. prodotto: 749011499
SINCLAIR INTERNATIONAL 44 CALIBER CHAMBER LENGTH GAGE
Parti Fabbricante: G429 I misuratori della lunghezza della camera Sinclair sono progettati affinché il ricaricatore possa determinare la vera lunghezza della camera del suo fucile misurando dalla faccia dell'otturatore fino alla fine del collo della camera. Questa misurazione ti dirà quanto eccesso di lunghezza del bossolo la tua camera potrebbe avere rispetto alle lunghezze di taglio pubblicate nei manuali di ricarica. I misuratori Sinclair vengono inseriti in un bossolo accorciato, sparato e non primato e poi camerati nel tuo fucile. L'inserto viene spinto indietro nel bossolo quando tocca la fine della tua camera. Puoi quindi estrarre il bossolo e misurare la lunghezza totale. Il misuratore è realizzato in acciaio dolce 12L14, quindi non danneggerà la tua camera. Istruzioni passo-passo accompagnano ogni misuratore. I misuratori possono essere utilizzati ripetutamente. Le differenze tra le lunghezze di taglio pubblicate e la lunghezza effettiva della tua camera possono essere piuttosto significative. Potresti star tagliando eccessivamente i tuoi bossoli di .030 pollici o più. NOTA: Il misuratore di calibro 22 non funzionerà su bossoli a collo sottile come il 22 Hornet, 218 Bee o cartucce basate su questi bossoli. Il misuratore di calibro 30 non funzionerà sul 30-30 Winchester. Nessuno dei misuratori elencati funzionerà su camere a collo stretto, ad eccezione del G-243T. Non dovrebbe essere utilizzato in pistole, fucili semi-automatici, fucili a leva e fucili a pompa.

9.9 CHF 3 CHF 9.90 *

Tempi di consegna circa 8-15 giorni dal magazzino negli Stati Uniti.

Caratteristiche: Calibro: 44 Calibro (.429-.430)
